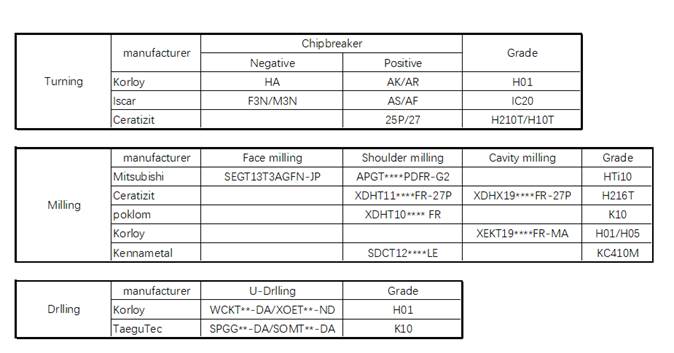

In aluminum alloy processing, commonly used tool manufacturers include Korloy，Ceratizit，Mitsubishi，poklom，Iscar，Kennametal，TaeguTec，In the following article, we will list the relevant Chipbreaker and grades one by one for your reference.
In turning, common ones include Korloy Negative insert CNGG1204**-HA H01, WNGG0804**-HA H01, DNGG1504**-HA H01,VNGG1604**-HA H01，Positive insert CCGT06/09/12**-AK/AR H01, DCGT07/11**-AK/AR H01, VCGT11/16/22**-AK/AR H01. Iscar Negative insert CNGG1204**-F3N IC20, WNGG0804**-F3N IC20,VNGG1604**-F3N IC20，Positive insert CCGT06/09/12**-AS/AF IC20, DCGT07/11**-AS/AF IC20, VCGT11/16/22**-AS/AF IC20. Ceratizit Positive insert CCGT06/09/12**-25P/27 H210T/H10T, DCGT07/11**-25P/27 H210T/H10T, VCGT11/16/**-25P/27 H210T/H10T.
In Milling, common ones include Mitsubishi face milling SEGT13T3AGFN-JP HTi10，Shoulder milling APGT11/16**PDFR-G2 HTi10.Ceratizit Shoulder milling XDHT11/19****FR-27P H216T ,Cavity milling XDHX19****FR-27P H216T.poklom Shoulder milling XDHT10**** FR K10 polished.Korloy Cavity milling XEKT19****FR-MA H01/H05. Kennametal Shoulder milling SDCT12****LE KC410M.
In Drilling, common ones include Korloy U-drilling WCKT**-DA/XOET**-ND H01. TaeguTec SPGG**-DA/SOMT**-DA K10.
Aluminum alloy material is relatively soft and prone to sticking to cutting edge, which affects the machining surface of the workpiece and the lifes of the cutting tool. Therefore, the cutting edge of the tool is sharp, reducing the cutting force. The rake face must be polished to reduce friction and minimize the possibility of sticking to the blade. The tool material is mainly composed of K-type fine particle carbides, combined with two materials: DLC coating and uncoated polishing treatment。
